Grid and Form in Magento 2 Admin Panel (Part 1)

17 Sep 2015
In this 6th tutorial, I will introduce you how to create data grid and form via Magento 2 backend in custom module. This tutorial is quite long then we will divide it into several parts.

Hi guys,

In this 6th tutorial, I will introduce you how to create a data grid via Magento 2 backend in custom module. This tutorial is quite long then we will divide it into several parts. We will continue using the Tutorial_SimpleNews module in the last post.

 In order to understand this tutorial thoroughly, please review our last tutorials:

1. How to create a simple module in Magento 2

2. Create a module with custom database table in Magento 2

3. How to use Model and Collection in Magento 2

4. How to create the configuration via backend for a custom module

5. Adding new menu item via backend in custom module



Ok, now let’s get started!



Step 1: Create layout files.

- Create file: app/code/Tutorial/SimpleNews/view/adminhtml/layout/simplenews_news_index.xml (Purpose: This file is used to declare grid container block) and insert this following code into it:

<?xml version="1.0"?>

<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="../../../../../../../lib/internal/Magento/
Framework/View/Layout/etc/page_configuration.xsd">
   <update handle="formkey"/>
   <update handle="simplenews_news_grid_block"/>
   <body>
       <referenceContainer name="content">
           <block class="Tutorial\SimpleNews\Block\Adminhtml\News"
               name="tutorial_simplenews_news.grid.container" />
       </referenceContainer>
   </body>
</page>



- Create file: app/code/Tutorial/SimpleNews/view/adminhtml/layout/simplenews_news_grid_block.xml (Purpose: This file is used to declare the content of grid block) and insert this following code into it:

<?xml version="1.0"?>

<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="../../../../../../../lib/internal/Magento/
Framework/View/Layout/etc/page_configuration.xsd">
    <body>
      <referenceBlock name="tutorial_simplenews_news.grid.container">
         <block class="Magento\Backend\Block\Widget\Grid" name="tutorial_simplenews_news.grid"
             as="grid">
             <arguments>
                 <argument name="id" xsi:type="string">newsGrid</argument>
                 <argument name="dataSource" xsi:type="object">
                    Tutorial\SimpleNews\Model\Resource\News\Collection
                 </argument>
                 <argument name="default_sort" xsi:type="string">id</argument>
                 <argument name="default_dir" xsi:type="string">desc</argument>
                 <argument name="save_parameters_in_session" xsi:type="boolean">
                     true
                 </argument>
                 <argument name="use_ajax" xsi:type="boolean">true</argument>
                 <argument name="grid_url" xsi:type="url" path="*/*/grid">
                     <param name="_current">1</param>
                 </argument>
             </arguments>
                <block class="Magento\Backend\Block\Widget\Grid\Massaction"
                    name="tutorial_simplenews_news.grid.massaction" as="grid.massaction">
                    <arguments>
                        <argument name="massaction_id_field" xsi:type="string">id</argument>
                        <argument name="form_field_name" xsi:type="string">news</argument>
                        <argument name="options" xsi:type="array">
                            <item name="delete" xsi:type="array">
                                <item name="label" xsi:type="string" translate="true">
                                    Delete
                                </item>
                                <item name="url" xsi:type="string">*/*/massDelete</item>
                                <item name="confirm" xsi:type="string" translate="true">
                                    Are you sure you want to delete?
                                </item>
                            </item>
                        </argument>
                    </arguments>
                </block>
                <block class="Magento\Backend\Block\Widget\Grid\ColumnSet"
                    name="tutorial_simplenews_news.grid.columnSet" as="grid.columnSet">
                    <arguments>
                        <argument name="rowUrl" xsi:type="array">
                            <item name="path" xsi:type="string">*/*/edit</item>
                            <item name="extraParamsTemplate" xsi:type="array">
                                <item name="id" xsi:type="string">getId</item>
                            </item>
                        </argument>
                    </arguments>
                    <block class="Magento\Backend\Block\Widget\Grid\Column" as="id">
                        <arguments>
                            <argument name="header" xsi:type="string" translate="true">
                                ID
                            </argument>
                            <argument name="type" xsi:type="string">number</argument>
                            <argument name="id" xsi:type="string">id</argument>
                            <argument name="index" xsi:type="string">id</argument>
                        </arguments>
                    </block>
                    <block class="Magento\Backend\Block\Widget\Grid\Column" as="title">
                        <arguments>
                            <argument name="header" xsi:type="string" translate="true">
                                Title
                            </argument>
                            <argument name="index" xsi:type="string">title</argument>
                        </arguments>
                    </block>
                    <block class="Magento\Backend\Block\Widget\Grid\Column" as="summary">
                        <arguments>
                            <argument name="header" xsi:type="string" translate="true">
                                Summary
                            </argument>
                            <argument name="index" xsi:type="string">summary</argument>
                        </arguments>
                    </block>
                    <block class="Magento\Backend\Block\Widget\Grid\Column" as="status">
                        <arguments>
                            <argument name="header" xsi:type="string" translate="true">
                                Status
                            </argument>
                            <argument name="index" xsi:type="string">status</argument>
                            <argument name="type" xsi:type="string">options</argument>
                            <argument name="options" xsi:type="options" model="Tutorial\
                                SimpleNews\Model\System\Config\Status"/>
                        </arguments>
                    </block>
                    <block class="Magento\Backend\Block\Widget\Grid\Column" as="action"
                        acl="Tutorial_SimpleNews::manage_news">
                        <arguments>
                            <argument name="id" xsi:type="string">action</argument>
                            <argument name="header" xsi:type="string" translate="true">
                                Action
                            </argument>
                            <argument name="type" xsi:type="string">action</argument>
                            <argument name="getter" xsi:type="string">getId</argument>
                            <argument name="filter" xsi:type="boolean">false</argument>
                            <argument name="sortable" xsi:type="boolean">false</argument>
                            <argument name="index" xsi:type="string">stores</argument>
                            <argument name="is_system" xsi:type="boolean">true</argument>
                            <argument name="actions" xsi:type="array">
                                <item name="view_action" xsi:type="array">
                                    <item name="caption" xsi:type="string" translate="true">
                                        Edit
                                    </item>
                                    <item name="url" xsi:type="array">
                                        <item name="base" xsi:type="string">*/*/edit</item>
                                    </item>
                                    <item name="field" xsi:type="string">id</item>
                                </item>
                            </argument>
                            <argument name="header_css_class" xsi:type="string">
                                col-actions
                            </argument>
                            <argument name="column_css_class" xsi:type="string">
                                col-actions
                            </argument>
                        </arguments>
                    </block>
                </block>
         </block>
      </referenceBlock>
    </body>
</page>



- Create file: app/code/Tutorial/SimpleNews/view/adminhtml/layout/simplenews_news_grid.xml (Purpose: This file is used to declare the content of grid when you use ajax to reload the grid) and insert this following code into it:

<?xml version="1.0"?>

<layout xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="../../../../../../../lib/internal/Magento/
Framework/View/Layout/etc/layout_generic.xsd">
    <update handle="formkey"/>
    <update handle="simplenews_news_grid_block"/>
    <container name="root">
        <block class="Magento\Backend\Block\Widget\Grid\Container"
            name="tutorial_simplenews_news.grid.container"
            template="Magento_Backend::widget/grid/container/empty.phtml"/>
    </container>
</layout>



Step 2: Create News status options file.

- Create file: app/code/Tutorial/SimpleNews/Model/System/Config/Status.php (Purpose: This file is used to get News status options) and insert this following code into it:

<?php

namespace Tutorial\SimpleNews\Model\System\Config;

use Magento\Framework\Option\ArrayInterface;

class Status implements ArrayInterface
{
    const ENABLED  = 1;
    const DISABLED = 0;

    /**
     * @return array
     */
    public function toOptionArray()
    {
        $options = [
            self::ENABLED => __('Enabled'),
            self::DISABLED => __('Disabled')
        ];

        return $options;
    }
}



Step 3: Create block files.

- Create file: app/code/Tutorial/SimpleNews/Block/Adminhtml/News.php (Purpose: This is the block file of grid container) and insert this following code into it:

<?php

namespace Tutorial\SimpleNews\Block\Adminhtml;

use Magento\Backend\Block\Widget\Grid\Container;

class News extends Container
{
   /**
     * Constructor
     *
     * @return void
     */
   protected function _construct()
    {
        $this->_controller = 'adminhtml_news';
        $this->_blockGroup = 'Tutorial_SimpleNews';
        $this->_headerText = __('Manage News');
        $this->_addButtonLabel = __('Add News');
        parent::_construct();
    }
}



- Create file: app/code/Tutorial/SimpleNews/Block/Adminhtml/News/Grid.php (Purpose: This is the block file of grid) and insert this following code into it:

<?php

namespace Tutorial\SimpleNews\Block\Adminhtml\News;

use Magento\Backend\Block\Widget\Grid as WidgetGrid;

class Grid extends WidgetGrid
{

}



Step 4: Create controller files.

- Create file: app/code/Tutorial/SimpleNews/Controller/Adminhtml/News.php (Purpose: I use this file as a root controller and the action classes will be extended this controller) and insert this following code into it:

<?php

namespace Tutorial\SimpleNews\Controller\Adminhtml;

use Magento\Backend\App\Action;
use Magento\Backend\App\Action\Context;
use Magento\Framework\Registry;
use Magento\Framework\View\Result\PageFactory;
use Tutorial\SimpleNews\Model\NewsFactory;

class News extends Action
{
    /**
     * Core registry
     *
     * @var \Magento\Framework\Registry
     */
    protected $_coreRegistry;

    /**
     * Result page factory
     *
     * @var \Magento\Framework\View\Result\PageFactory
     */
    protected $_resultPageFactory;

    /**
     * News model factory
     *
     * @var \Tutorial\SimpleNews\Model\NewsFactory
     */
    protected $_newsFactory;

    /**
     * @param Context $context
     * @param Registry $coreRegistry
     * @param PageFactory $resultPageFactory
     * @param NewsFactory $newsFactory
     */
    public function __construct(
        Context $context,
        Registry $coreRegistry,
        PageFactory $resultPageFactory,
        NewsFactory $newsFactory
    ) {
       parent::__construct($context);
        $this->_coreRegistry = $coreRegistry;
        $this->_resultPageFactory = $resultPageFactory;
        $this->_newsFactory = $newsFactory;
    }

    /**
     * News access rights checking
     *
     * @return bool
     */
    protected function _isAllowed()
    {
        return $this->_authorization->isAllowed('Tutorial_SimpleNews::manage_news');
    }
}



- Create file: app/code/Tutorial/SimpleNews/Controller/Adminhtml/News/Index.php (Purpose: This is the index action) and insert this following code into it:

<?php

namespace Tutorial\SimpleNews\Controller\Adminhtml\News;

use Tutorial\SimpleNews\Controller\Adminhtml\News;

class Index extends News
{
    /**
     * @return void
     */
   public function execute()
   {
      if ($this->getRequest()->getQuery('ajax')) {
            $this->_forward('grid');
            return;
        }

        /** @var \Magento\Backend\Model\View\Result\Page $resultPage */
        $resultPage = $this->_resultPageFactory->create();
        $resultPage->setActiveMenu('Tutorial_SimpleNews::main_menu');
        $resultPage->getConfig()->getTitle()->prepend(__('Simple News'));

        return $resultPage;
   }
}



- Create file: app/code/Tutorial/SimpleNews/Controller/Adminhtml/News/Grid.php (Purpose: This is the grid action which is used for loading grid by ajax) and insert this following code into it:

<?php

namespace Tutorial\SimpleNews\Controller\Adminhtml\News;

use Tutorial\SimpleNews\Controller\Adminhtml\News;

class Grid extends News
{
   /**
     * @return void
     */
   public function execute()
   {
      return $this->_resultPageFactory->create();
   }
}

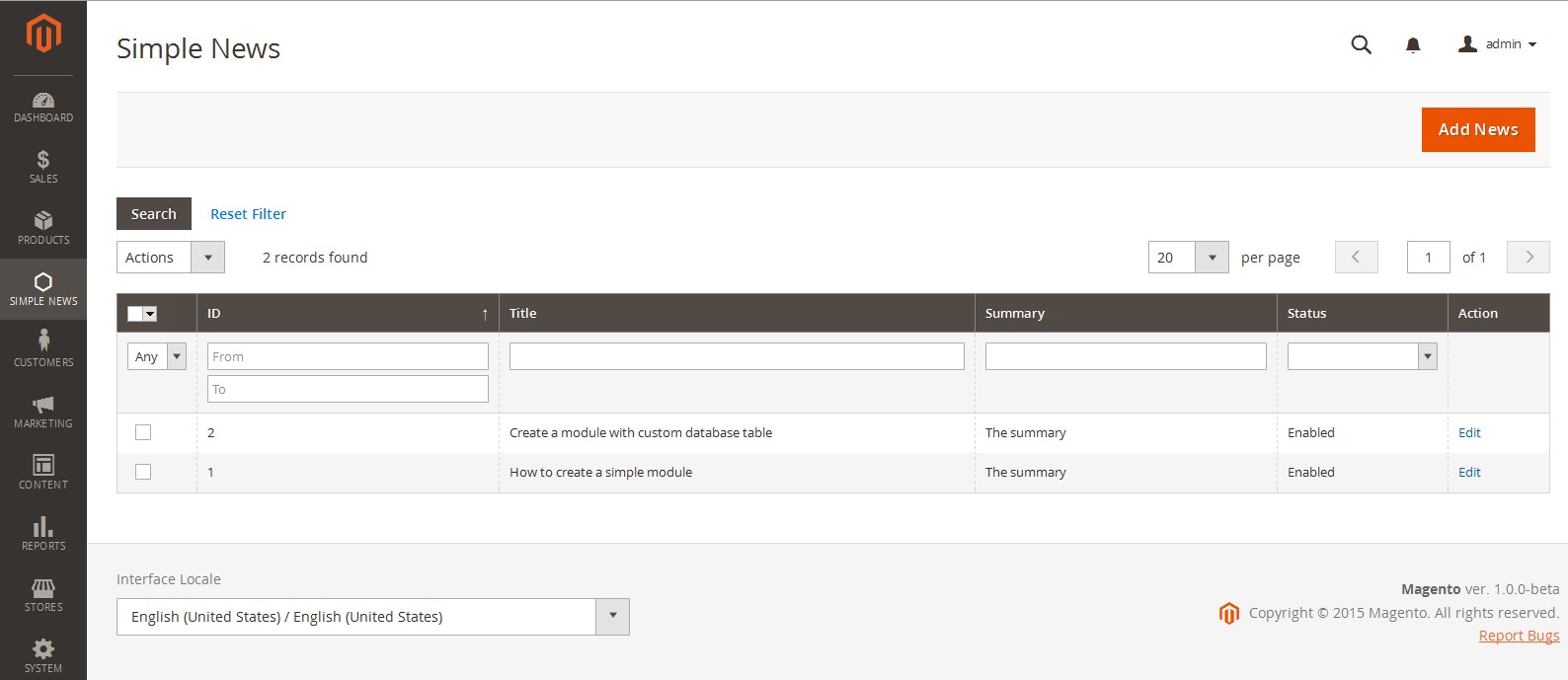

Finally, go to backend site then access Simple News > Manage News menu to see your result:



That’s the first part of this tutorial. See you again in the next part, in which I will introduce you how to create a form in Magento 2 Admin Panel.

Enjoy Magento 2 challenge with MageWorld ‘s tutorials! Follow our facebook fanpage for further discussion.
